230mm 9 Inch Diamond Cup Wheel Double Row Cup Wheel For Stone Hard Building Materials
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 971000080 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | 29.38usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond+65 Mn | Size: | 230mm |
|---|---|---|---|
| Wheel Type: | Angle Grinding Wheels | Customized Support: | OEM, ODM |
| Product Name: | Concrete Grinding Cup Wheel | Viscosity: | Good |
| Production Experience: | Since 1980s | Shape: | Cup-Shaped, Cup-Shaped |
| Place Of Origin: | Jiangsu, China | Grit: | 30/40 |
| Package: | Inner Box+carton | ||
| High Light: | 230mm 9 inch diamond cup wheel Double Row,9 diamond cup wheel,9 inch concrete grinding wheel |
||
Product Description

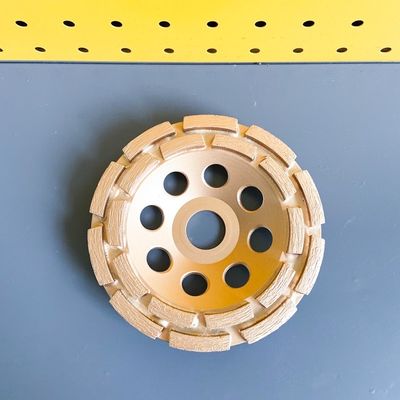

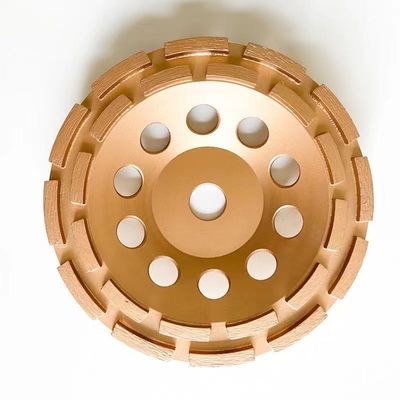

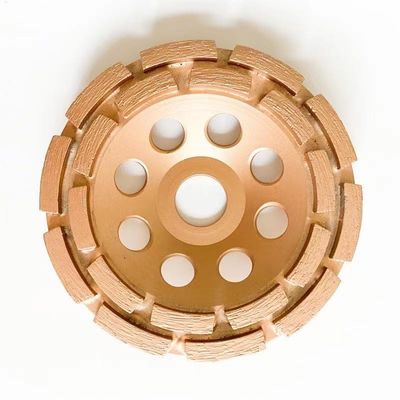

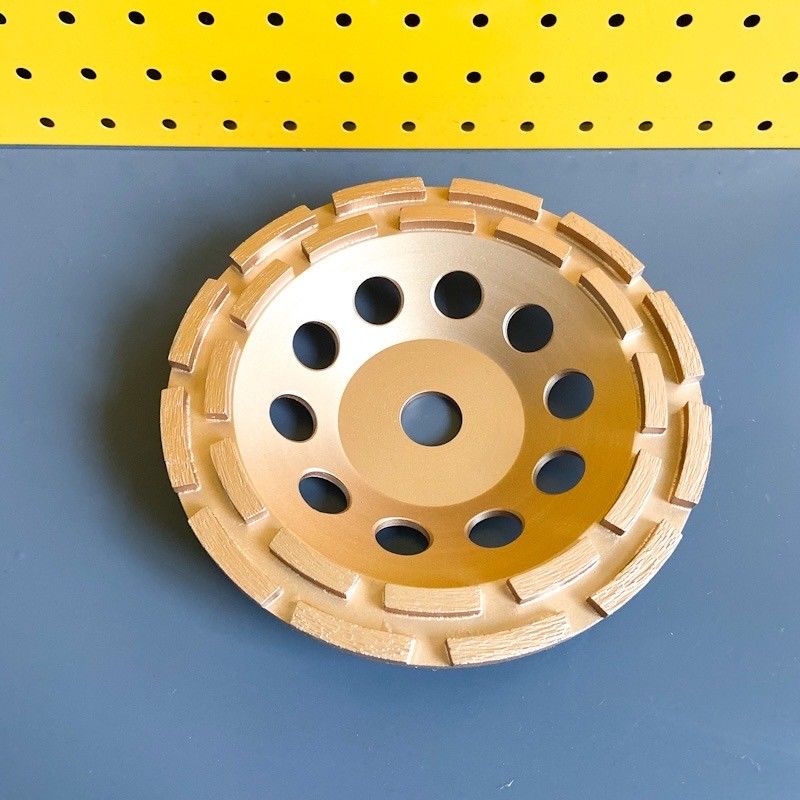

230mm 9 inch diamond cup wheel double row cup wheel For Stone Hard Building Materials
1 Diamond grinding wheels are mainly used for grinding and polishing removal, deburring, chamfering, smoothing and shaping stone products such as Granite ,Marble, Sandstone, Limestone, etc aggressively material smooth finish.Also Ideal for Grinding Concrete Porcelain tiles, masonry, artificial stone surfaces as well as stock removal.
2.Including single row,double row and turbo styles
3. Fast cutting with minimal dust ,used dry or wet grinding
4.High working efficiency and using easily
5.Convenient installation with universal connection
6.Low-noise,no-dust,friendly surroundings,safety operation.
7.long working life and hardness
8.We can make the customers' logo
Diamond turbo type grinding wheel
1)65Mn plate,super class diamond and metal powders
2)for fast and smooth grinding and buffing hard stone.
| why choose us |
| 1.Choose high quality material to provide more stable product to our customers |
| 2.We promote product value by more smooth section |
| 3.We accelerate production efficiency by sharp saw-blades and longer life span |
| 4.The company complete quality control system, solving customer’s concern |
| item | value |
| Certification | OSA, EN13236 |
| Grit | 30/40# |
| Wheel Type | Angle Grinding Wheels |
| Size |
'230×5×7.2×18/18T×22.23mm |
| Customized support | OEM, ODM |
| Place of Origin | Jiangsu China |
| Brand Name | HUACHANG |
| Shape | Cup-Shaped |
| Bonding Agent | Resin |
| Hardness | Hard |
| Viscosity | Good |
| Process Type | Laser welded |
| Shape | Cup-Shaped |
| Abrasive | diamond |
| Hardness | Hard |
| Product name | concrete grinding cup wheel |
| Certifications | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | European standard EN13236 |
| Production Experience | From 1980s |
| Package | Inner Box+Outer Carton |
| Advantage: | Imporved efficiency,cutting life and operator safety |
other more sizes
| OUTER DIAMETER | ARBOR SIZE | SEGMENT | SEGMENT | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | DIMENSION | NUMBER |
| 4” | 100 | 7/8” | 22.23 | 30X5X7.2 | 12 |
| 4.125” | 105 | 7/8” | 22.23 | 31 X5X7.2 | 12 |
| 4.3" | 110 | 7/8” | 22.23 | 32x5x7.2 | 12 |
| 4.5” | 115 | 7/8" | 22.23 | 30X5X7.2 | 18 |
| 5” | 125 | 7/8" | 22.23 | 30X5X7.2 | 20 |
| 6” | 150 | 7/8” | 22.23 | 30X5X7.2 | 24 |
| 7" | 178 | 7/8” | 22.23 | 35X5X7.2 | 24 |
| 7.1” | 180 | 7/8” | 22.23 | 30X5X7.2 | 26 |
| 9" | 230 | 7/8” | 22.23 | 32X5X7.2 | 36 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
