105mm 4 Double Row Diamond Cup Wheel Grinding For Concrete Huachang Tools
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 970600830 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | 10.63usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond+65 Mn | Size: | 105mm |
|---|---|---|---|
| Wheel Type: | Angle Grinding Wheels | Customized Support: | OEM, ODM |
| Product Name: | Concrete Grinding Cup Wheel | Viscosity: | Good |
| Production Experience: | Since 1980s | Shape: | Cup-Shaped, Cup-Shaped |
| Place Of Origin: | Jiangsu, China | Grit: | 30/40 |
| Package: | Inner Box+carton | ||
| High Light: | 105mm 4 Double Row Diamond Cup Wheel,105mm 4 Double Row Diamond Cup,4 Double Row Diamond Cup 105mm |
||
Product Description

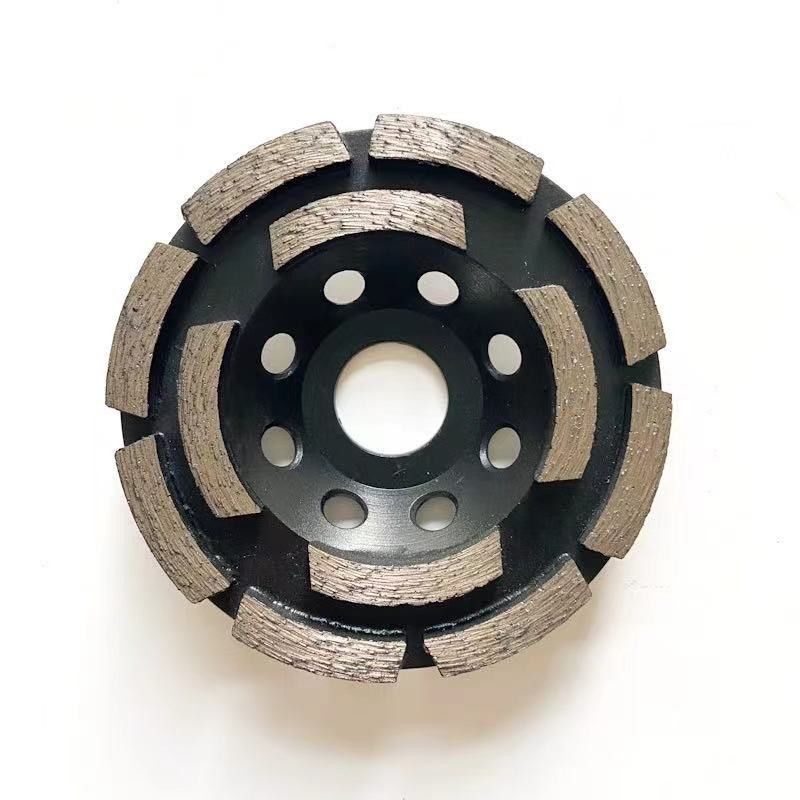

105mm 4 double row diamond cup wheel grinding For Concrete
Material
Diamond, metal base, metal powder
Size
4"~7"
Segment Size
5mm height
Segment No.
As request
Arbor
22.23mm, 5/8”-7/8", 5/8”-11, M14 etc
Grit
6#, 16#, 30#, 60#, 80#, 120#, 150# etc
Bond
Soft, medium, hard(customization is available)
Color
Black, red, blue, green or as your request
Application
For grinding concrete and terrazzo floor
Applied machine
Angle grinder
Advantages
1. Aggressive and durable
2. Apply Dynamic balance technology, ensures its balance under high speed rotation.
3. Special metal base design, fast chip removal.
4. OEM/ODM service are available.
| item | value |
| Certification | OSA, EN13236 |
| Grit | 30/40# |
| Wheel Type | Angle Grinding Wheels |
| Size |
'105×(31×5×7.2)×8T/4T×22.23mm |
| Customized support | OEM, ODM |
| Place of Origin | Jiangsu China |
| Brand Name | HUACHANG |
| Shape | Cup-Shaped |
| Bonding Agent | Resin |
| Hardness | Hard |
| Viscosity | Good |
| Process Type | Laser welded |
| Shape | Cup-Shaped |
| Abrasive | diamond |
| Hardness | Hard |
| Product name | concrete grinding cup wheel |
| Certifications | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | European standard EN13236 |
| Production Experience | From 1980s |
| Package | Inner Box+Outer Carton |
| Advantage: | Imporved efficiency,cutting life and operator safety |
other more sizes
| OUTER DIAMETER | ARBOR SIZE | SEGMENT | SEGMENT | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | DIMENSION | NUMBER |
| 4” | 100 | 7/8” | 22.23 | 30X5X7.2 | 12 |
| 4.125” | 105 | 7/8” | 22.23 | 31 X5X7.2 | 12 |
| 4.3" | 110 | 7/8” | 22.23 | 32x5x7.2 | 12 |
| 4.5” | 115 | 7/8" | 22.23 | 30X5X7.2 | 18 |
| 5” | 125 | 7/8" | 22.23 | 30X5X7.2 | 20 |
| 6” | 150 | 7/8” | 22.23 | 30X5X7.2 | 24 |
| 7" | 178 | 7/8” | 22.23 | 35X5X7.2 | 24 |
| 7.1” | 180 | 7/8” | 22.23 | 30X5X7.2 | 26 |
| 9" | 230 | 7/8” | 22.23 | 32X5X7.2 | 36 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
