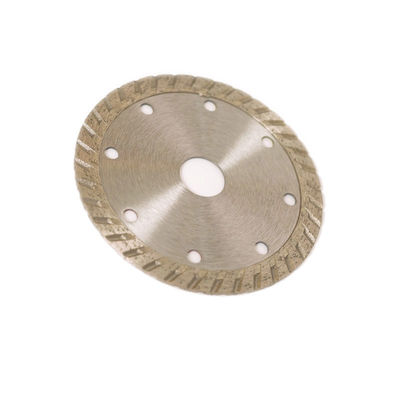

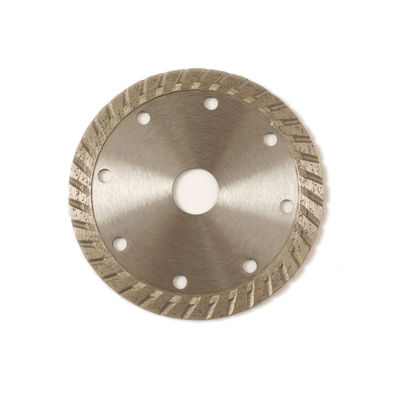

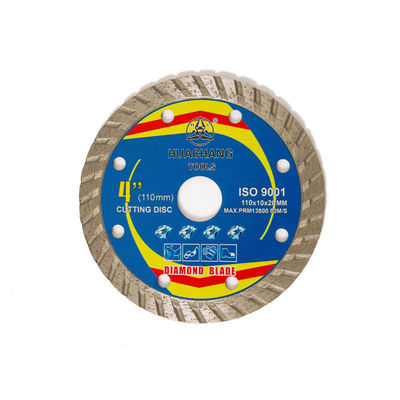

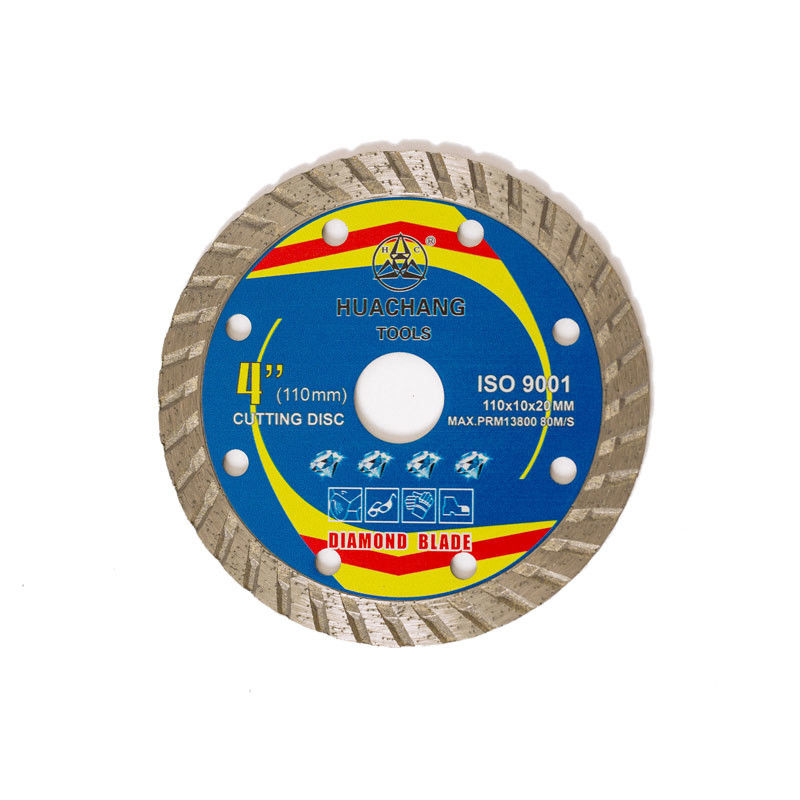

4.3inch 110x20mm Super Thin Porcelain Diamond Saw Blade High Quality 65Mn Steel Body
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 910500240 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 2.86usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond Segment &65Mn Steel Body | Color: | Green/blue/golden/black |
|---|---|---|---|
| Size: | 110×1.2/2.0×10×20mm | Process Type: | Hot Pressed |
| Certifications: | OSA,MPA ,ISO9001:2008,BV | Finishing:: | Painted&Polished |
| Advantage:: | Imporved Efficiency,cutting Life And Operator Safety | Quality Grade:: | Hot Press Sintered Blade |
| MOQ: | 1000 Pieces | Package: | Inner Box+Outer Carton |
| OEM: | Accpted | ||
| High Light: | 4.3inch 110x20mm super thin diamond porcelain saw blade,110x20mm super thin porcelain diamond saw blade 65Mn,4.3inch 110x20mm diamond tile cutting blade |
||
Product Description
4.3inch 110x20mm super thin porcelain diamond saw blade 65Mn Steel Body
design of Segment side face allows ideal debris removal and better cooling, improves thesharpness and cutting efficiency. Besides, this design reduces blade stone interface while cutting that will minimize cutting friction and noise.
Good cutting result. This special design will not allow easy edge collapse, break, tapered slab etc.
Specification of saw blade just for your reference ,any size would be order by our customers .
| Quick Details | |
| item | diamond saw blade |
| Product Name | hold-pressed 110mm sintered diamond blade |
| Applica ion | ceramic ,tile,granite,marble, concrete and brick |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 110×1.2/2.0×10×20mm |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Hot Press Sintered Blade |
| Color | Black blue red purple green golden yellow |
| Process Type | Hot Press |
| Place of Origin | Jiangsu China |
| BrandName | HUACHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | |
| 105×1.2/2.0×10×20 | 4" | 105 | 20 | |
| 110×1.2/2.0×10×20 | 4" | 110 | 20 | |
| 115×1.2/2.0×10×22.23 | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/2.0×10×22.23 | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.4×10×22.23 | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.6×10×22.23 | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.6×10×22.23 | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/3.0×10×22.23 | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4 | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4 | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.5×10×25.4 | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
