4" Diamond Blade For Porcelain Tile Slabs 125mm Mortar Raking Disc 105x20mm
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 910400320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 2.70usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond Segment &65Mn Steel Body | Color: | Green/blue/golden/black |
|---|---|---|---|
| Size: | 105*1.2/2.0*10*20mm | Process Type: | Hot Pressed |
| Certifications: | OSA,MPA ,ISO9001:2008,BV | Finishing:: | Painted&Polished |
| Advantage:: | Imporved Efficiency,cutting Life And Operator Safety | Quality Grade:: | Hot Press Sintered Blade |
| MOQ: | 1000 Pieces | Package: | Inner Box+Outer Carton |
| OEM: | Accpted | ||
| High Light: | 4" Diamond Blade Tile Slabs 125mm,125mm 4" Diamond Blade Tile Slabs,Diamond Blade Porcelain Tile Slabs 125mm 4" |
||
Product Description

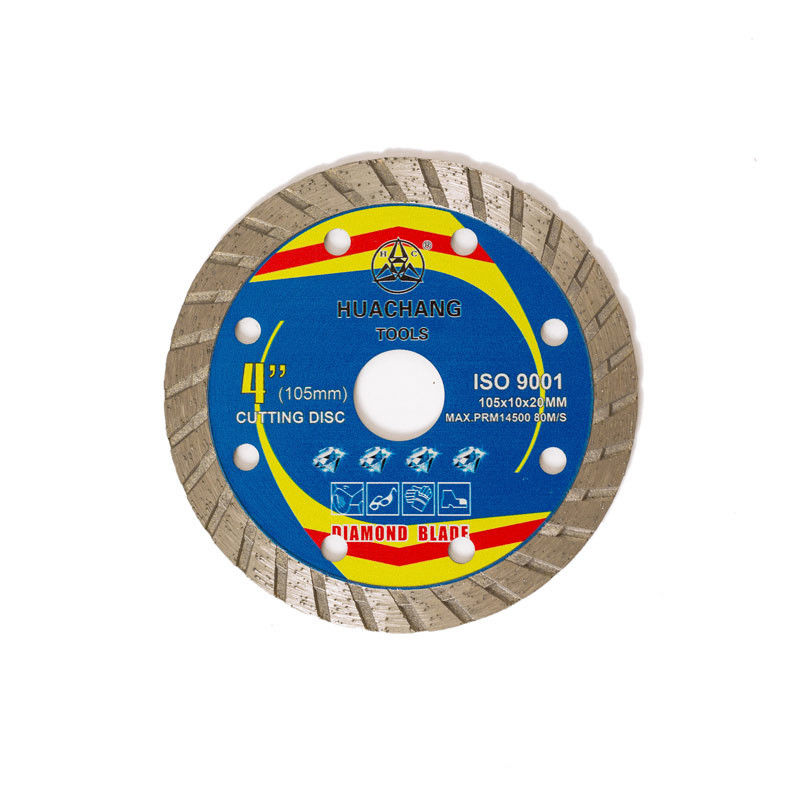

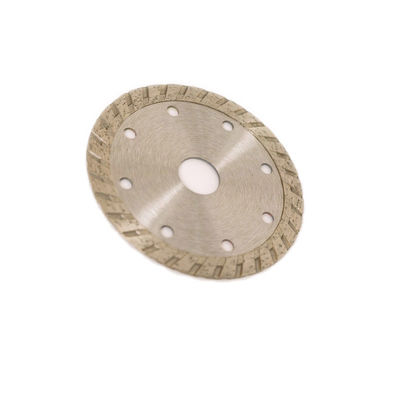

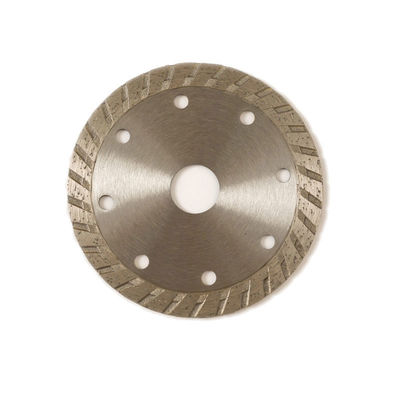

Hot Press 4inch 105*1.8/1.2*10*8*20mm Porcelain Diamond Blade 65Mn Steel Body With Long Cutting Life
diamond saw blade
Customized support
OEM
Gold Elephant
Usage
Cutting sintered stone
Product name
Diamond saw blade
Application
For sintered stone
Size
Customized Size
Feature
High Efficiency
Grade
Industrial Grade
Shape
Turbo ; Segmented ; Continuous
| Quick Details | |
| item | diamond saw blade |
| Product Name | 105mm sintered turbo diamond blade |
| Applica ion | ceramic ,tile |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 105*1.2/2.0*10*20mm |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Hot Press Sintered Blade |
| Color | Black blue red purple green golden yellow |
| Process Type | Hot Press |
| Place of Origin | Jiangsu China |
| BrandName | HUACHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | |
| 105×1.2/2.0×10×20 | 4" | 105 | 20 | |
| 110×1.2/2.0×10×20 | 4" | 110 | 20 | |
| 115×1.2/2.0×10×22.23 | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/2.0×10×22.23 | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.4×10×22.23 | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.6×10×22.23 | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.6×10×22.23 | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/3.0×10×22.23 | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4 | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4 | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.5×10×25.4 | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
