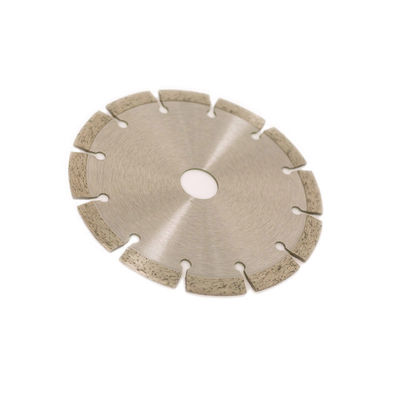

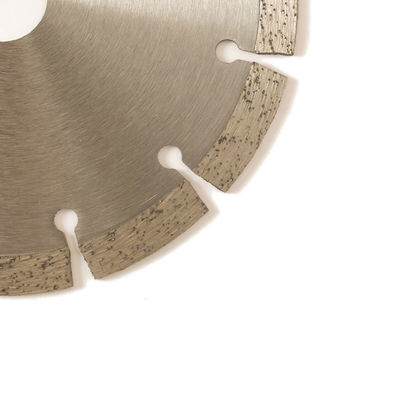

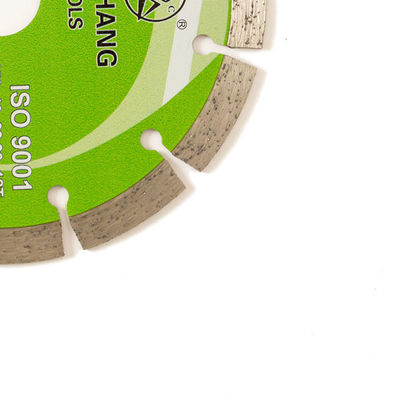

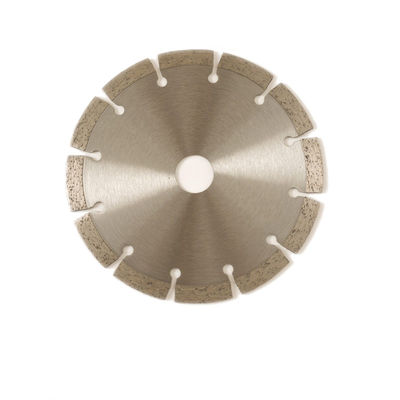

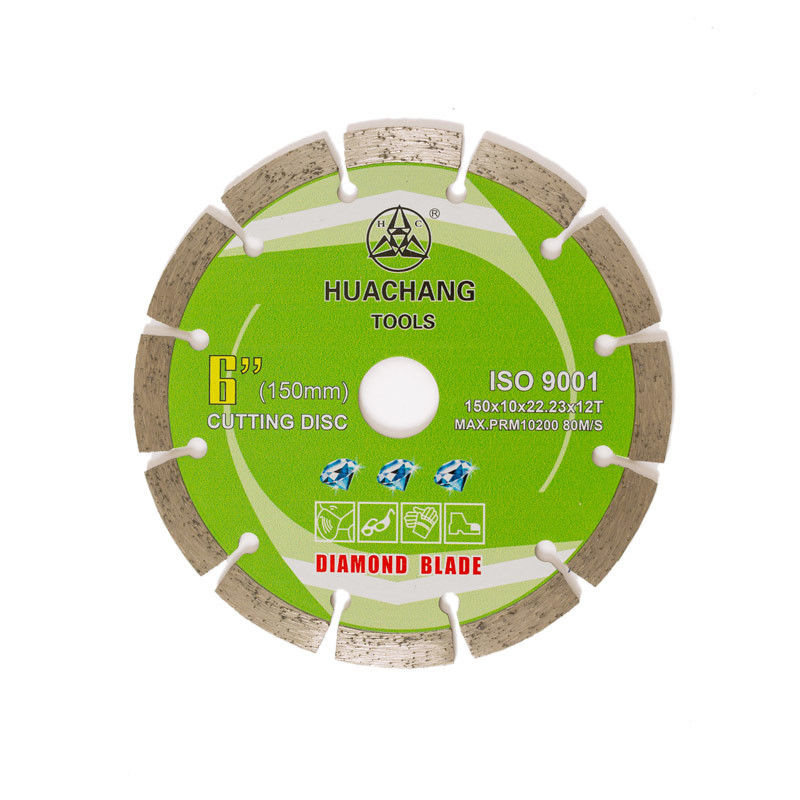

150x22.23mm 6 Inch Segmented Diamond Blade For Cutting Concrete Brick Stone
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 910900240 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 1.65usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond Segment &65Mn Steel Body | Color: | Green/blue/golden/black |
|---|---|---|---|
| Size: | 150×1.4/2.0×10×22.23×12T | Process Type: | Cold Pressed |
| Certifications: | OSA,MPA ,ISO9001:2008,BV | Finishing:: | Painted&Polished |
| Advantage:: | Imporved Efficiency,cutting Life And Operator Safety | Quality Grade:: | Cold Press Sintered Blade |
| MOQ: | 1000 Pieces | Package: | Inner Box+Outer Carton |
| OEM: | Accpted | ||
| High Light: | 6 inch Segmented Diamond Blade 150x22.23mm,150x22.23mm 6 inch Segmented Diamond Blades,6 inch stone segmented diamond blade 150 x 22.23mm |
||
Product Description
Cold Press 6inch '150×1.4/2.0×10×22.23×12T Segmented Diamond Blade For General Purpose , Stone And Concrete Oem
| Quick Details | |
| item | diamond saw blade |
| Product Name | cold-pressed 150mm sintered diamond blade |
| Applica ion | ceramic ,tile,granite,marble, concrete and brick |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 150×1.4/2.0×10×22.23×12T |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Cold Press Sintered Blade |
| Color | Blackblueredpurplegreengoldenyellow |
| Process Type | Cold Press |
| Place of Origin | Jiangsu China |
| BrandName | HUACHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
Application&Working Life For Different Marble Blades:
Small-Hole Slot / Fish-Hook Slot:
Especially suitable for cutting marble slabs that are hard to cut (For example:Golden Century beige
marble, Magnolia marble,Royal botticinio Beige marble,and Rose beige marble), Top choice for cutting
hard Marble&Jade.
Life: Φ350 marble blade ,It can cut slabs into pieces (each pieces:600*600*20) with a total area being 1500-1800 square meters.
Narrow U-slot:
Especially suitable for cutting marble slabs of high and medium hardness.
Life: Φ350 marble blade, It can cut slabs into pieces (each pieces:600*600*20) with a total area being not less than 1800 square meters.
U-slot:
Especially suitable for cutting marble slabs of medium and soft hardness.
Life: Φ350 marble blade, It can cut slabs into pieces (each pieces:600*600*20) with a total area being not less than 1200 square meters.
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | |
| 105×1.2/1.8×10×20×8T | 4" | 105 | 20 | |
| 110×1.2/1.8×10×20×8T | 4" | 110 | 20 | |
| 115×1.2/1.8×10×22.23×8T | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/1.8×10×22.23×9T | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.0×10×22.23×12T | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.2×10×22.23×14T | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.2×10×22.23×14T | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/2.6×10×22.23×18T | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4×22T | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4×24T | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.4×10×25.4×28T | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
