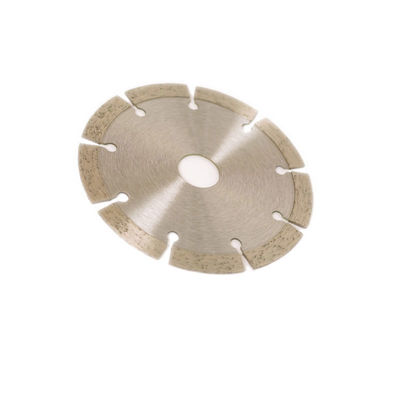

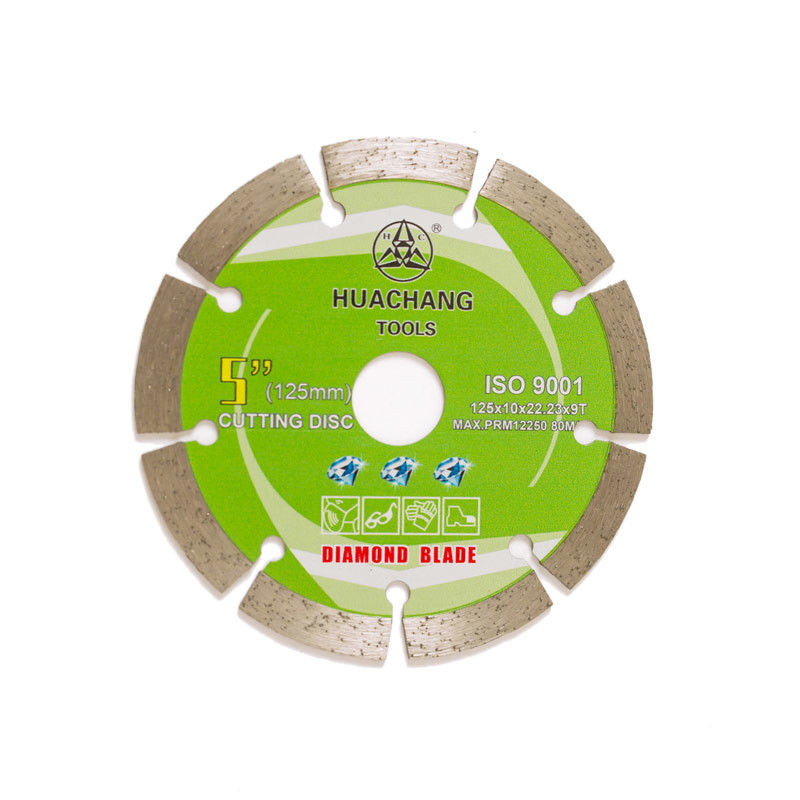

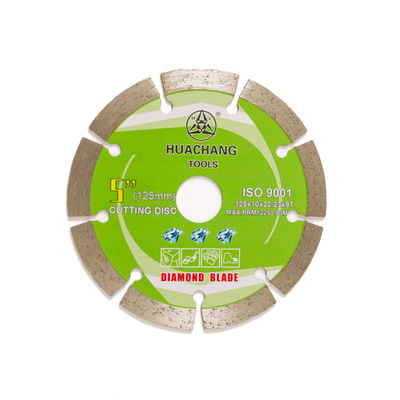

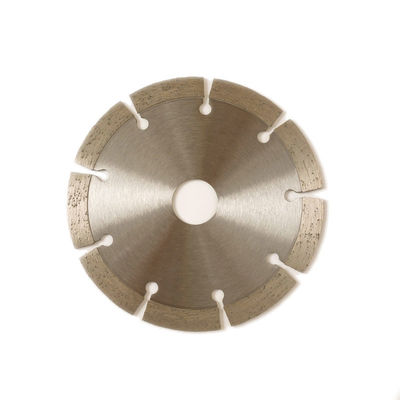

5" 125mm Segmented Diamond Blade 22.23mm Bore Segmented Cutting Disc
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 910800380 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 1.11usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond Segment &65Mn Steel Body | Color: | Green/blue/golden/black |
|---|---|---|---|
| Size: | 125×1.2/1.8×10×22.23×9T | Process Type: | Cold Pressed |
| Certifications: | OSA,MPA ,ISO9001:2008,BV | Finishing:: | Painted&Polished |
| Advantage:: | Imporved Efficiency,cutting Life And Operator Safety | Quality Grade:: | Cold Press Sintered Blade |
| MOQ: | 1000 Pieces | Package: | Inner Box+Outer Carton |
| OEM: | Accpted | ||
| High Light: | 5 inch segmented diamond blade,5" 125mm segmented diamond blade 22.23mm bore,diamond segmented blade |
||
Product Description
Cold Press 5inch '125×1.2/1.8×10×22.23×9T Segmented Diamond Blade For General Purpose , Stone And Concrete
| Quick Details | |
| item | diamond saw blade |
| Product Name | cold-pressed 125mm sintered diamond blade |
| Applica ion | ceramic ,tile,granite,marble, concrete and brick |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 125×1.2/1.8×10×22.23×9T |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Cold Press Sintered Blade |
| Color | Blackblueredpurplegreengoldenyellow |
| Process Type | Cold Press |
| Place of Origin | Jiangsu China |
| BrandName | HUACHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | |
| 105×1.2/1.8×10×20×8T | 4" | 105 | 20 | |
| 110×1.2/1.8×10×20×8T | 4" | 110 | 20 | |
| 115×1.2/1.8×10×22.23×8T | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/1.8×10×22.23×9T | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.0×10×22.23×12T | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.2×10×22.23×14T | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.2×10×22.23×14T | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/2.6×10×22.23×18T | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4×22T | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4×24T | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.4×10×25.4×28T | 16'' | 400 | 1'' | 25.4 |
JIANGSU HUACHANG TOOLS MANUFACTURING CO., LTD. was established in 1980s, and has a long history of more than 20 years. We are now a high technology enterprise with the capability of production, sales, and research of new technology.
We are supported with a powerful technology team, advanced production line, and inspection equipment. We strictly conform to lS09001-2000 quality control system, and IS014001-2004 environment system. Inspection between processes follows the EN standard. Our aim is to make“HUACHANG ”famous all over the world.
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
