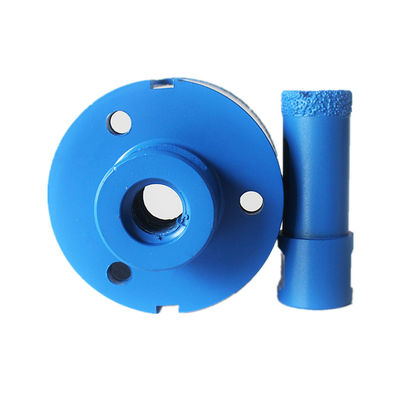

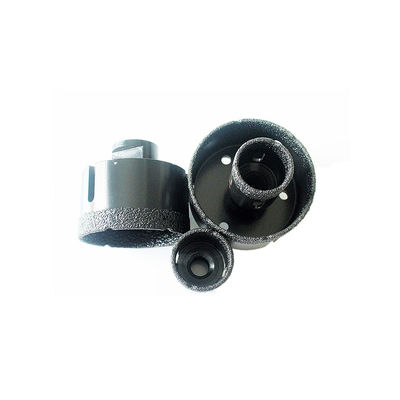

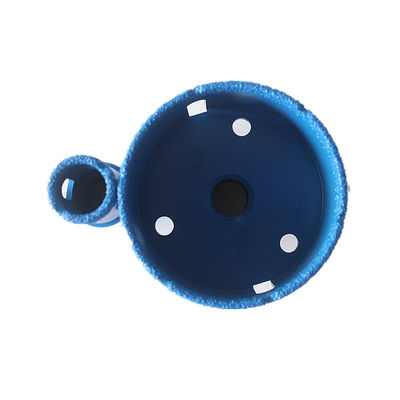

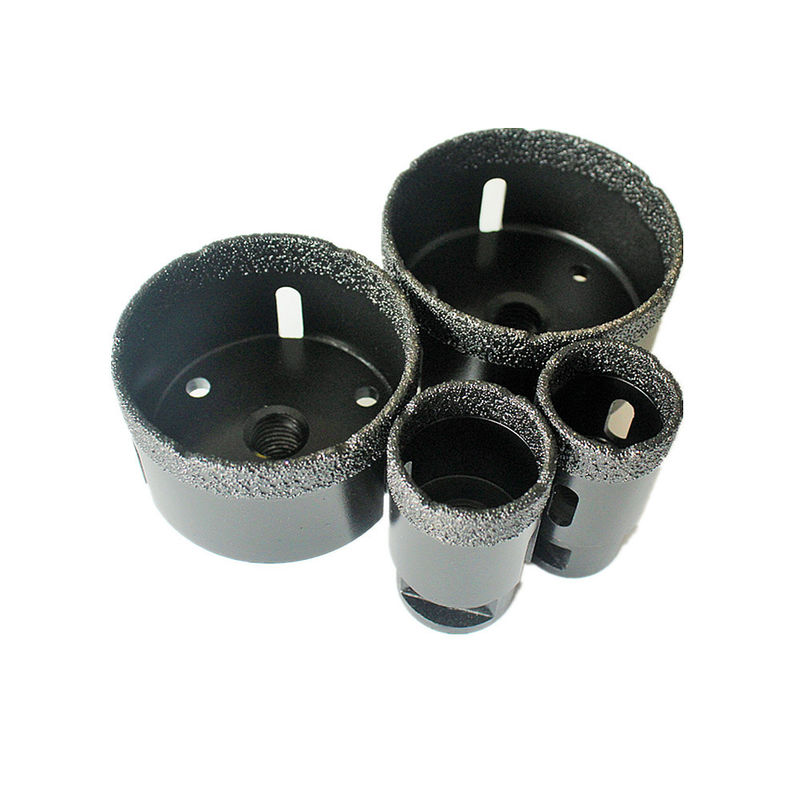

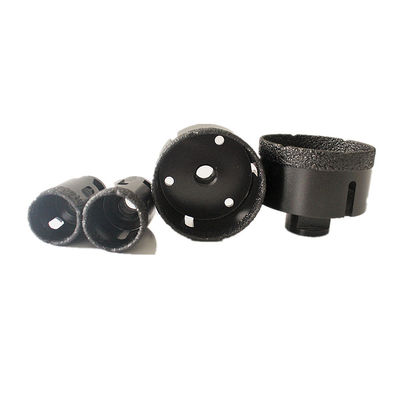

60mm Diamond Drill Bit For Quartz Glass And Tile Glass Jewelry Stone 37x10x60xM14
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 980203034 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | $4.22/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | 65Mn | Customized Support: | OEM, ODM |
|---|---|---|---|
| Place Of Origin: | Jiangsu, China | Use: | For Marble, Ceramic ,granite,porcelain Drilling Holes |
| Cutter Head Material: | Diamond | Finish: | Painting |
| Painting: | Core Drill Bit | Brand Name: | HUACHANG |
| Color: | Red Green Blue Golden Yellow | ||
| Highlight: | diamond drill bits for stone,diamond drill bits for glass jewelry,diamond drill bit glass and tile |
||
Product Description
60mm Diamond Drill Bit For Quartz Glass And Tile Glass Jewelry Stone 37x10x60xM14
Specification : Diameter :5-40mm
Diamond width :10mm
Fast, smooth drilling and long life
Grit: #30,#40,#50,as customer request.
Thread: M14 Shank.
Special design are available upon request
Feature :
Advantages of diamond tools cutting bit:
1) For stone, concrete, brick, tile, glass, fiberglass, etc
2) Perfect safety, excellent fast, high efficiency and complicated shape
3) Rather longer life than the electroplated tools.
4) Various diamond grain and grade to meet various application-cutting, drilling, grinding.
5) Environment friendly
| item | value |
| Product information | Diamond Core Drills |
| Wheel Type | Angle Grinding Wheels |
| Size | 37×10×60×M14 |
| Customized support | OEM, ODM |
| Place of Origin | Jiangsu China |
| Brand Name | HUACHANG |
| Shape | M14 |
| Hardness | Hard |
| Viscosity | Good |
| Process Type | vacuum brazed |
| Abrasive | diamond |
| Product name | Diamond Core Drills bit for porcelain / Ceramic |
| Production Experience | From 1980s |
| Package | Inner Box+Outer Carton |
| Advantage: | imporved efficiency,cutting life and operator safety |
| Business Scope | Diamond cutting blade ,TCT saw blade ,Abrasive tools , Core drill bit , Segment , Wire saw ,Concrete product |
| size | Diameter | Grit | Diamond Width | Effective Total Length | shank |
| 5×10×60×M14 | 5MM | #40 | 10MM | 60MM | M14 |
| 6×10×60×M14 | 6MM | #40 | 10MM | 60MM | M14 |
| 8×10×60×M14 | 8MM | #40 | 10MM | 60MM | M14 |
| 10×10×60×M14 | 10MM | #40 | 10MM | 60MM | M14 |
| 12×10×60×M14 | 12MM | #40 | 10MM | 60MM | M14 |
| 14×10×60×M14 | 14MM | #40 | 10MM | 60MM | M14 |
| 16×10×60×M14 | 16MM | #40 | 10MM | 60MM | M14 |
| 20×10×60×M14 | 20MM | #40 | 10MM | 60MM | M14 |
| 22×10×60×M14 | 22MM | #40 | 10MM | 60MM | M14 |
| 27×10×60×M14 | 27MM | #40 | 10MM | 60MM | M14 |
| 28×10×60×M14 | 28MM | #40 | 10MM | 60MM | M14 |
| 30×10×60×M14 | 30MM | #40 | 10MM | 60MM | M14 |
| 32×10×60×M14 | 32MM | #40 | 10MM | 60MM | M14 |
| 35×10×60×M14 | 35MM | #40 | 10MM | 60MM | M14 |
| 37×10×60×M14 | 37MM | #40 | 10MM | 60MM | M14 |
| 40×10×60×M14 | 40MM | #40 | 10MM | 60MM | M14 |
JIANGSU HUACHANG TOOLS MANUFACTURING CO., LTD. was established in 1980s, and has a long history of more than 20 years. We are now a high technology enterprise with the capability of production, sales, and research of new technology.
We are supported with a powerful technology team, advanced production line, and inspection equipment. We strictly conform to lS09001-2000 quality control system, and IS014001-2004 environment system. Inspection between processes follows the EN standard. Our aim is to make“HUACHANG ”famous all over the world.
