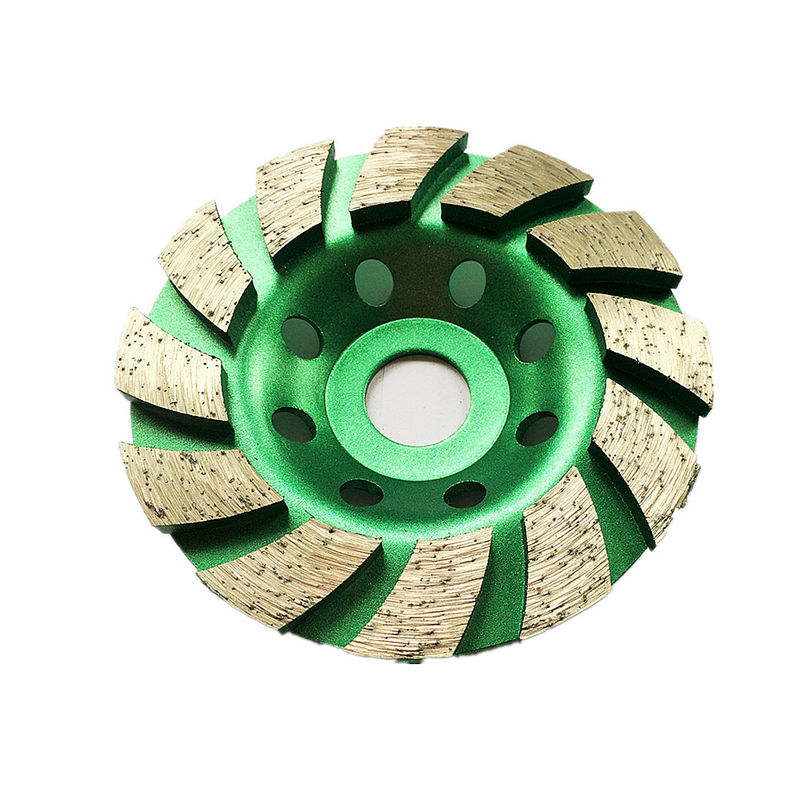

105mm 4-Inch Diamond Turbo Grinding Cup Wheel For Angle Grinders Concrete
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 970500500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | 11.25usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond+65 Mn | Size: | 105mm |
|---|---|---|---|
| Wheel Type: | Angle Grinding Wheels | Customized Support: | OEM, ODM |
| Product Name: | Concrete Grinding Cup Wheel | Viscosity: | Good |
| Production Experience: | Since 1980s | Shape: | Cup-Shaped, Cup-Shaped |
| Place Of Origin: | Jiangsu, China | Grit: | 35/40 |
| Package: | Inner Box+carton | ||
| High Light: | 4 in. diamond turbo cup wheel for angle grinders,turbo diamond cup wheel concrete,Diamond Segment Grinding Wheels |
||
Product Description
High quality 4inch laser welded 105mm diamond segmented turbo grinding cup wheel for concrete , stone, building material
cup wheels are designed for fast removal of paint, urethene, epoxy, adhesives and residues. They are more aggressive and longer lasting than conventional diamond cup wheels.
Quarter round segments for fast production and long life.
Great for removing surface coatings including epoxies, mastic and glue.
The PCD segment scrapes and rips the coating from the surface.
Can be used wet or dry.
6 PCDs for 4" and 4.5", 5", 6", and 9 or 12 PCDs for 7".
Connection: M14, 5/8"-11, 22.23mm hole etc;
| item | value |
| Certification | OSA, EN13236 |
| Grit | 30/40# |
| Wheel Type | Angle Grinding Wheels |
| Size |
'105×10T(24×7×5)×22.23mm |
| Customized support | OEM, ODM |
| Place of Origin | Jiangsu China |
| Brand Name | HUACHANG |
| Shape | Cup-Shaped |
| Bonding Agent | Resin |
| Hardness | Hard |
| Viscosity | Good |
| Process Type | Laser welded |
| Shape | Cup-Shaped |
| Abrasive | diamond |
| Hardness | Hard |
| Product name | concrete grinding cup wheel |
| Certifications | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | European standard EN13236 |
| Production Experience | From 1980s |
| Package | Inner Box+Outer Carton |
| Advantage: | Imporved efficiency,cutting life and operator safety |
SEGMENTED TURBO CUP GRINDING WHEEL ---other more sizes
| OUTER DIAMETER | ARBOR SIZE | SEGMENT | SEGMENT | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | DIMENSION | NUMBER |
| 4.125" | 105 | 7/8” | 22.23 | 24X7X5/8 | 10/13 |
| 4.5” | 115 | 7/8” | 22.23 | 25X7X5/8 | 9/18 |
| 5M | 125 | 7/8” | 22.23 | 25X7X5/8 | 9/18 |
| 6M | 150 | 7/8” | 22.23 | 25X8X5/8 | 10/20 |
| 7.1” | 180 | 7/8” | 22.23 | 25X8X5/8 | 12/18/24 |
| 9” | 230 | 7/8” | 22.23 | 29X8X5/8 | 18/24/32 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
