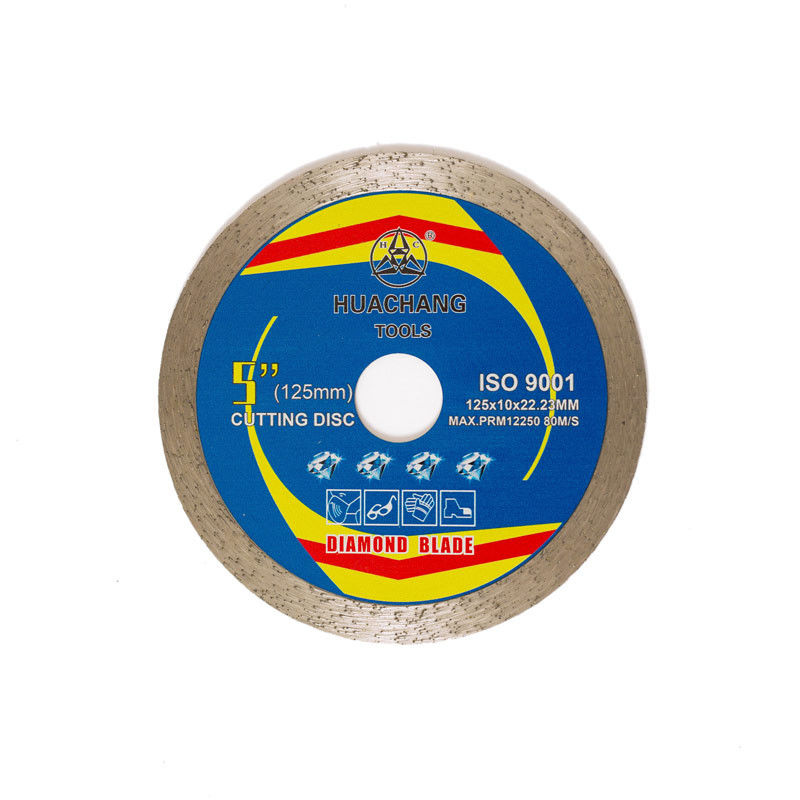

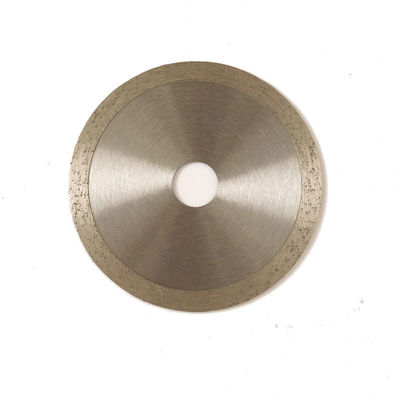

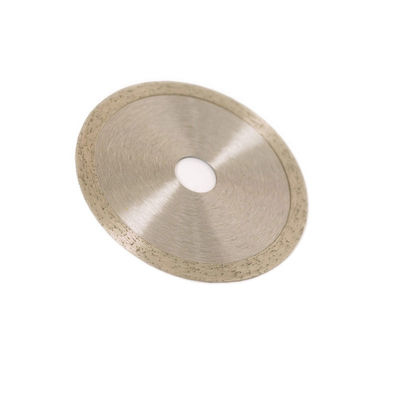

125MM 5 Diamond Tile Blade For Skill Saw Glass 22.23mm Bore
Product Details:
| Place of Origin: | JIANGSU CHINA |
| Brand Name: | HUACHANG |
| Model Number: | 910800400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 3.52usd/pcs |
| Packaging Details: | white paper box |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 25000pcs per month |
|
Detail Information |
|||
| Material: | Diamond Segment &65Mn Steel Body | Color: | Green/blue/golden/black |
|---|---|---|---|
| Size: | 125×1.2/1.8×10×22.23mm | Process Type: | Hot Pressed |
| Certifications: | OSA,MPA ,ISO9001:2008,BV | Finishing:: | Painted&Polished |
| Advantage:: | Imporved Efficiency,cutting Life And Operator Safety | Quality Grade:: | Hot Press Sintered Blade |
| MOQ: | 1000 Pieces | Package: | Inner Box+Outer Carton |
| OEM: | Accpted | ||
| Highlight: | Diamond Tile Blade Skill Saw Glass 22.23mm Bore,Diamond Tile Blade Skill Saw 22.23mm Bore,Diamond Blade Skill Saw Glass 22.23mm Bore |
||
Product Description
5inch '125×1.2/1.8×10×22.23mm Hot Press Diamond Tile Saw Blades For General Purpose ,Ceramic , Marble And Concrete
hot pressed diamond saw blade:
is the powder of the cutting tools are attached to the substrate by electroplating method.
Saw blade speed:
When sawing granite, saw blades linear velocity can be in 25 m ~ 35 m/s within the scope of the selected.
Particle size:
The commonly used diamond grain size in the range of 30/35 ~ 60/80. The hard rock, should be selected with a fine granularity.
| Quick Details | |
| item | diamond saw blade |
| Product Name | hot-pressed 125mm sintered diamond blade |
| Applica ion | ceramic ,tile, |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 125×1.2/1.8×10×22.23mm |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Hot Press Sintered Blade |
| Color | Black/Bluer/Red/Purple/Green/Golden/Yellow |
| Process Type | Hot Press |
| Place of Origin | Jiangsu China |
| BrandName | HUA CHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE | ||
| INCHES | METRIC(MM) | INCHES | METRIC(MM) | |
| 105×1.2/1.8×10×20 | 4" | 105 | 20 | |
| 110×1.2/1.8×10×20 | 4" | 110 | 20 | |
| 115×1.2/1.8×10×22.23 | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/1.8×10×22.23 | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.0×10×22.23 | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.2×10×22.23 | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.2×10×22.23 | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/2.6×10×22.23 | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4 | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4 | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.4×10×25.4 | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
